Stain Dipper Slider Guide

In my last post I had an image of one of the guides and the slider in the background.  The slider is an aluminum extrusion and the guide is 0.75″ thick Oil Filled Nylon.  Nylon is resistant to stain and other chemicals we are using as well as having a low friction coefficient.

Here is a close up of the 3D Assembly taken straight from my computer screen.

2018-07-10 - 174917

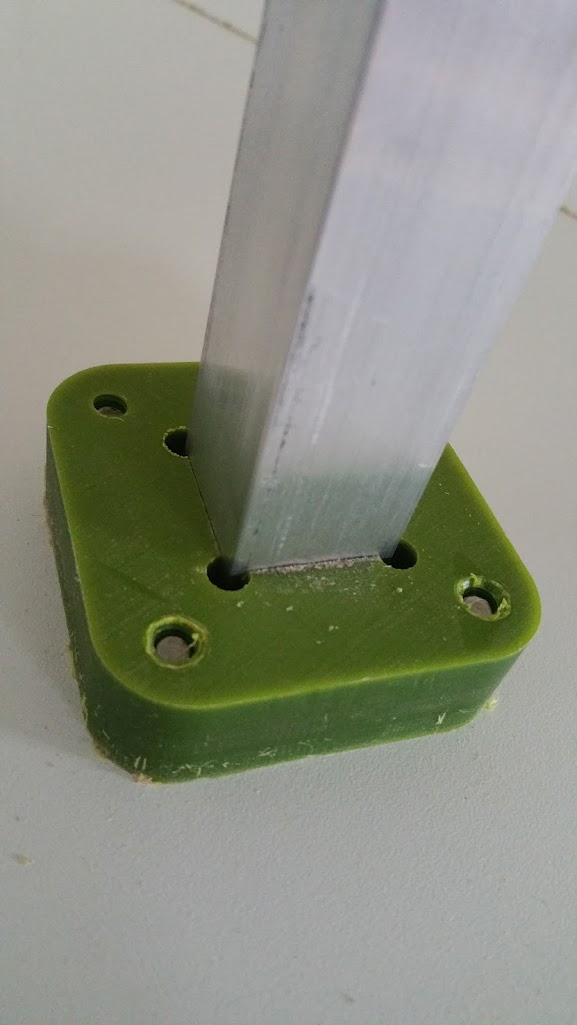

Here is a photograph taken with my phone of the actual part that has been machined and installed.  There is something satisfying about designing something and then making it exactly (within tolerance) to the size and shape you wanted.

20180710_135432

Stain Dipper Parts

Here is a screenshot of some of the parts we’ve designed for the Stain Dipper.  All of the mechanical parts are in the design and correctly positioned and all the hardware has been ordered…

Here are several of the parts from Fusion 360

Fusion360_2018-07-05_02-41-05

Here is a servo motor mount and custom made pulley.

Frame v27

Here is a small piece of Nylon used to connect a 1/16″ cable with a aluminum tube.

Fusion360_2018-07-03_22-27-15
